EQUIPMENT

Veterinary

RADIOLOGY EQUIPMENT

Product overview of X-ray units and equipment - code: AE001:

High frequency X-ray units:
	GIERTH HF 80 ML
	GIERTH TR 80/30
	GIERTH TR 90/30
	GIERTH RHF 200 ML
	GIERTH HF 200 A plus
	GIERTH HF 400 ML
	GIERTH HF 400 A

Stands:
	Trolley stand light for all GIERTH X-ray units up to 10.5 kg

	Trolley stand for all GIERTH units up to 18.5 kg

	Trolley stand EQUIMOBIL

	Trolley stand CASSETTE HOLDER

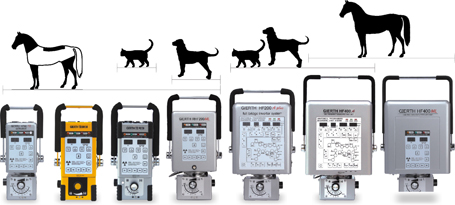

Portable X-ray units - view of the control panels:

GIERTH HF 80 ML
ULTRA LIGHT High
Frequency X-ray unit

GIERTH TR 80/30
High performance
and minimum size
and weight

GIERTH TR 90/30
Maximum power
and minimum size
and weight

GIERTH RHF 200 ML
Resonance high
frequency inverter
with the all purpose
vet unit

GIERTH HF 200 A plus
High frequency X-ray unit
with anatomical program

GIERTH HF 400 A
The “power pack” of
our portable HF X-ray
units with anatomical
program

GIERTH HF 400 ML
The “power pack” of
our portable HF X-ray
units

(Without X-ray generator)

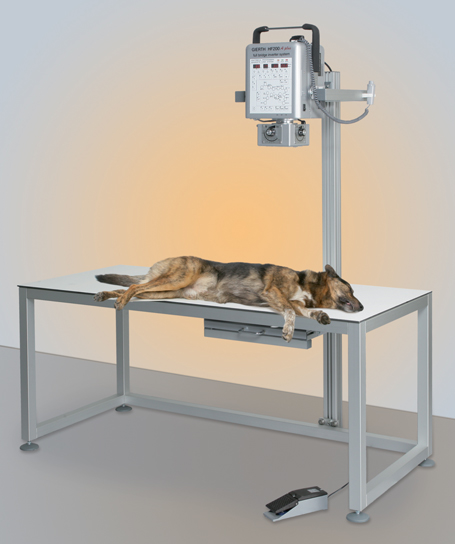

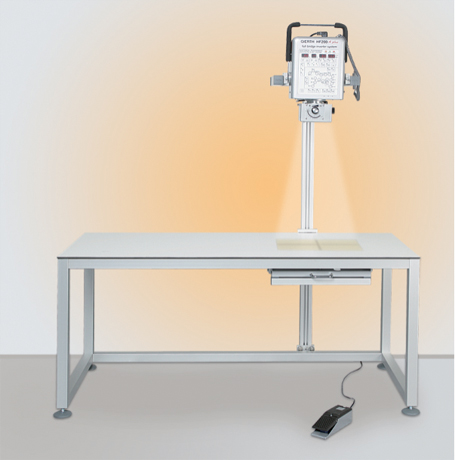

X-ray table "CombiVet S"
code: AE002


Brief description:

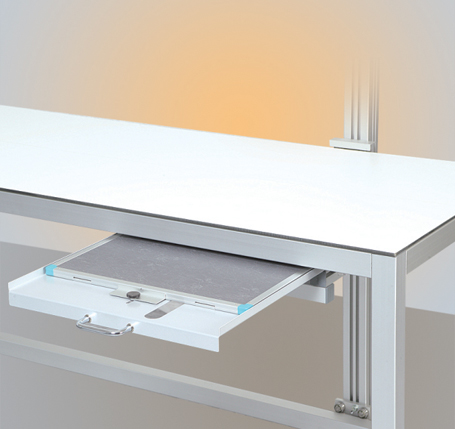

	The unit support pole moves along the table, simultaneously with the built in grid ready cassette holder. The X-ray unit is always perfectly aligned with the X-ray cassette. Only minimum repositioning of the patient is required.

	Table frame: anodised aluminium

	Table top: radiolucent white synthetic

	Easy to clean and disinfectant proof

	Optional: Adjustable positioning aide for dysplasia coxae

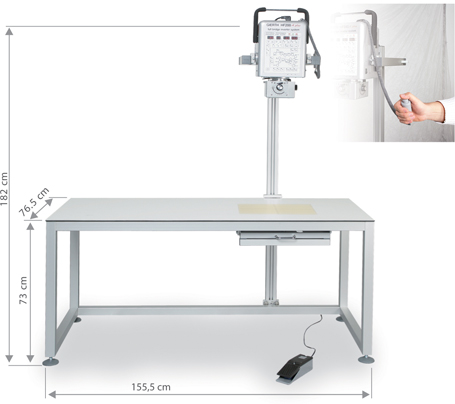

	Dimensions: Table top: 155.5 x 67.5 cm Working height: 73 cm Total height: 182 cm

Suspension Type I

Suspension Type II

Suspension Type III

X-ray unit suspension module available in three variations (Type 1 to 3)

Important: Please indicate your X-ray unit type for the required customization of the unit suspension size.

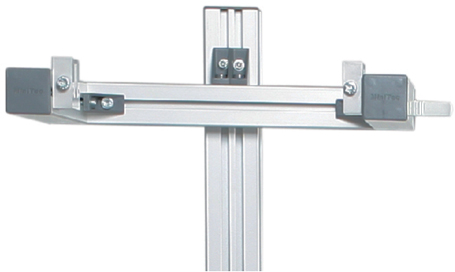

CombiVet S Type I is fitted with our standard unit suspension. This suspension is not height-adjustable; the film-focus-distance is fixed.
CombiVet S Type II is equipped with a height-adjustable unit suspension module, operated via crank case. It is also possible to slide the X-ray unit backwards and forwards in axial direction.

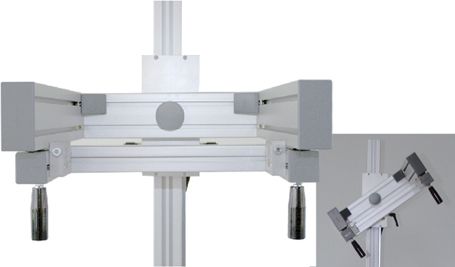

In addition to height-adjustment and axial movement, a pivot joint integrated in the unit suspension of Combivet S Type III allows rotation of the X-ray unit for slanted beam direction.

The X-ray generator can be operated with the hand control

* X-ray generator, hand control and foot pedal are not included.

Alternatively to the hand control, a foot pedal can be used to trigger the exposure

Specifications subject to revision without notice
Specifications subject to revision without notice
The editor strives to impart correct and up to date information. The provided specifications are based on current knowledge and are subject to revision without notice. This brochure is subject to correction. The editor assumes no responsibility for the information being up to date, correct and complete.
All furnished logos, pictures and graphics are property of the particular company and subject to copyright of the licensor. Use, dissemination, distribution or copying of the pictures, logos or text compiled or processed by the editor is subject to our written consent. All rights reserved.

(without X-ray unit)

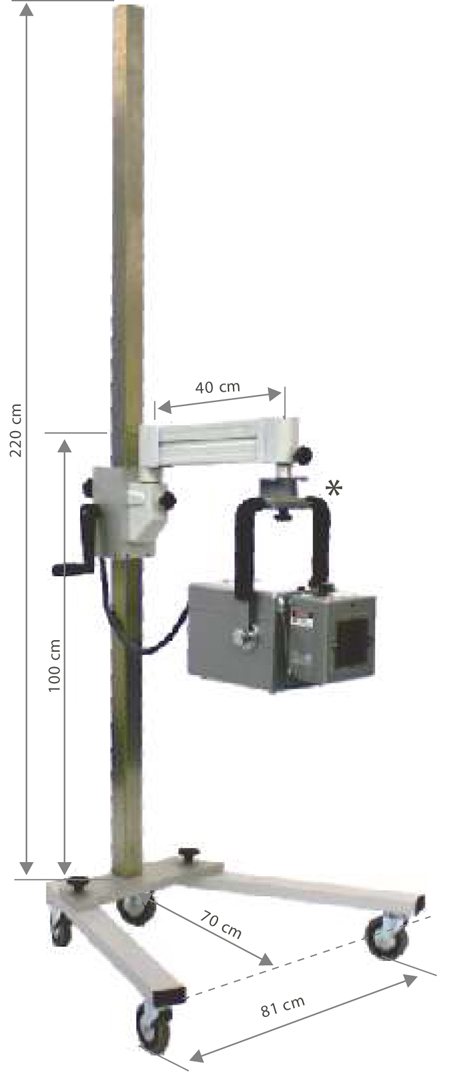

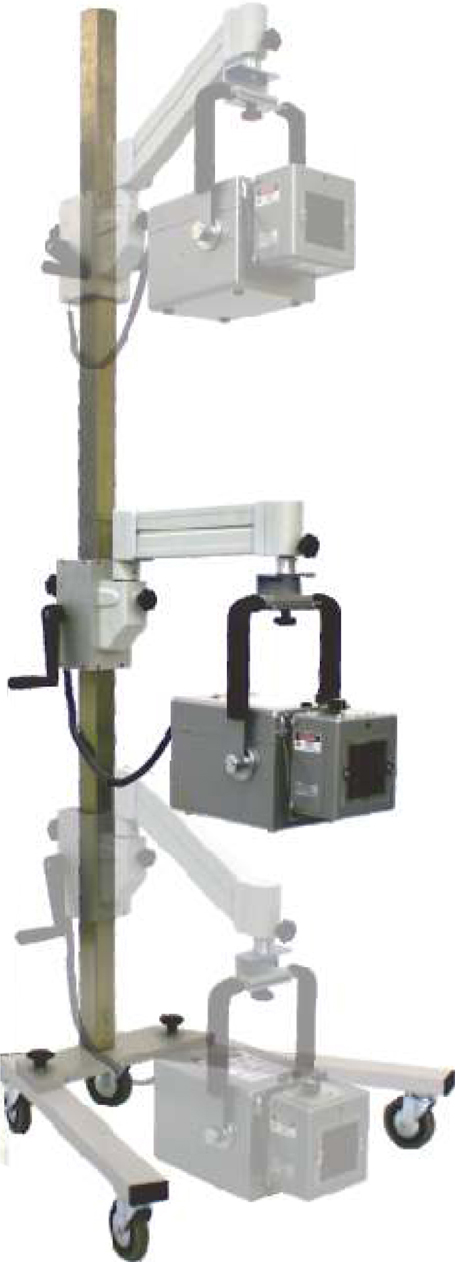

Trolley stand with spring arm for all GIERTH X-ray units up to 18.5 kg
code: AE003


Brief description:

	Sturdy, easy moveable trolley stand

	Designed for all GIERTH X-ray units up to 18.5 kg

	Continuous height adjustment by spring arm up to approximately 30 cm

	Base on four wheels

	Combination of two stainless steel rods (100 cm and 120 cm)

	Use one rod for all X-rays required for prepurchase exams, incl. proximal hock

	Connect both rods to position the unit for horizontal beam projection up to 210 cm.

	Mounted X-ray unit can be positioned in all directions and angles.

	Crank mechanism for height adjustment

	Combine with X-ray table or treatment table for utilization in small animal clinics.

* The X-ray unit is not included.

Material: corrosion resistant anodised aluminium, stainless steel rod Total weight: 23.1 kg

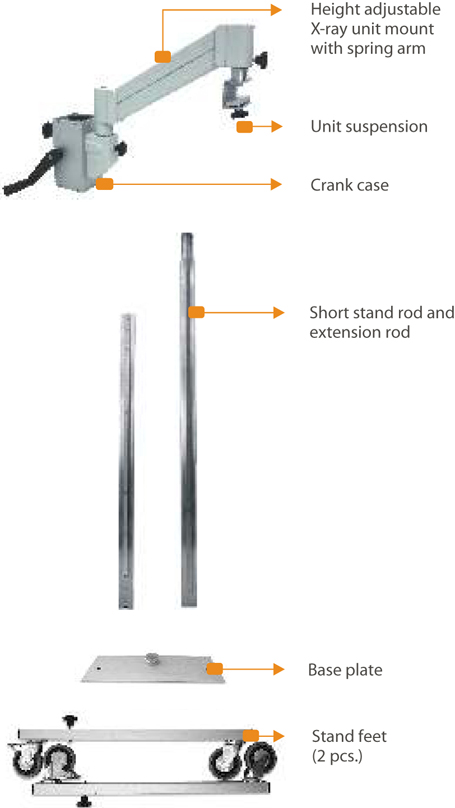

Components: The base can be dismantled into three components for easy transportation. The two piece rod can be taken apart, and the crank case detached

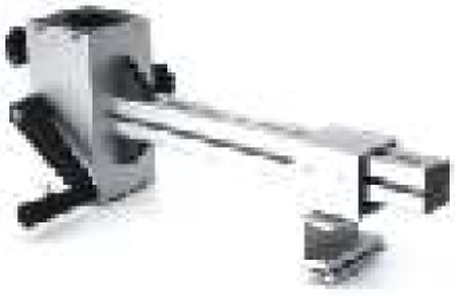

Optional:


Simplified X-ray unit mount height adjustable without spring arm


Specifications subject to revision without notice Specifications subject to revision without notice The editor strives to impart correct and up to date information. The provided specifications are based on current knowledge and are subject to revision without notice. This brochure is subject to correction. The editor assumes no responsibility for the information being up to date, correct and complete. All furnished logos, pictures and graphics are property of the particular company and subject to copyright of the licensor. Use, dissemination, distribution or copying of the pictures, logos or text compiled or processed by the editor is subject to our written consent. All rights reserved.

(The X-ray unit is not included)

Specifications and information

Type:
wall mount (or ceiling mount on special order)
Special features:
adjustable height stop precise
parallel movement guide easy
load bearing capacity adjustment
Load bearing capacity:
max. 21 kg (Wall mounts with higher load bearing capacity
available on order.)

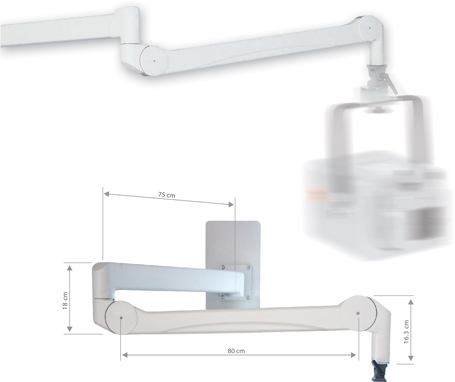

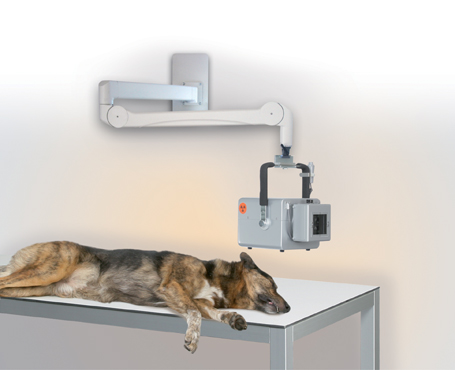

Spring arm wall mount for all GIERTH X-ray units
code: AE004


Brief description:

	Stationary X-ray unit suspension system

	Convenient continuously adjustable positioning of the X-ray unit for horizontal and vertical beam direction

	Smooth and even motion

	Innovative dead point suppression allows rotary motion of the unit without a dead stop

	Suspension spring arm with precise parallel guide

	Load bearing capacity and height stop can be adjusted without dismantling the system


Specifications subject to revision without notice Specifications subject to revision without notice The editor strives to impart correct and up to date information. The provided specifications are based on current knowledge and are subject to revision without notice. This brochure is subject to correction. The editor assumes no responsibility for the information being up to date, correct and complete. All furnished logos, pictures and graphics are property of the particular company and subject to copyright of the licensor. Use, dissemination, distribution or copying of the pictures, logos or text compiled or processed by the editor is subject to our written consent. All rights reserved.
