| EXAMINER & SURGERY LIGHTING |
|
|
| |
 |
| |
Handling

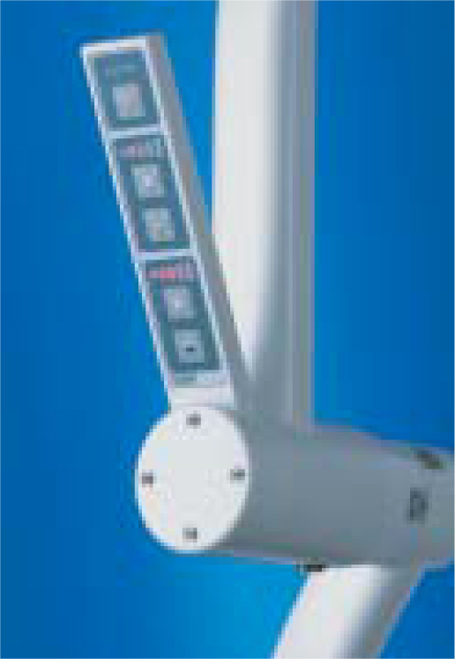

Focusing and step-less light
intensity control by means of
membrane keyboard. The
display shows the actual setting
of focus and light intensity.
|
|
Flow properties
The form of the housing shows
excellent flow properties, is
easy to clean and prevents heat
retention in the area of the
head. Furthermore it produces
optimum conditions for laminar
flow systems. |
|
Easy maintenance
The housing may be opened without
a tool. All components are
easily accessible.
Module technique ensures that
all essential components can
be simply replaced. Change of
bulbs within 30 seconds. |
| |
Colour rendition
previously unattainable colour
rendition Ra= 96 and R9= 90
makes it easy for you to see
the tiniest nuances of colour in
tissue, especially in the red and
yellow range. The colour spectrum
of the wound is rendered
naturally and with ample contrast.
The OT-light clearly pro vides
welcome relief for your eyes.
Special care has been given
to the natural rendition of the
colour red. The value R9 ≥ 90
allows the surgeon to recognise
details better in the area of the
wound. |
|
Modern production facilities and highly qualified personnel are a fundamental part of our perfected and innovative light systems.
code: FEX001
|
 |
| |
Integrated OT video system
A special electronic system
en ables the lamp’s power supply
as well as the sliding contacts
to be used for transmitting
the control and video signals.
No additional cables are required
for the camera, as previously
necessary.

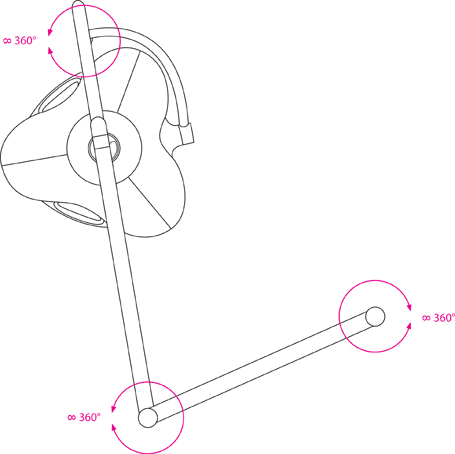

Continuous rotary movement
of the lamp at all joints.
Unproblematic later installation
of camera and therefore definitely
inexpensive. The camera
is integrated in the centre of the
lamp. Advantage: no adjustment
at different working distances
between light field and wound
field.
The base is a Sony camera with
72x zoom, autofocus, iris
control and picture rotation.
Superimposed date and time.
Remote camera control is
possible at same time from
lec ture hall and other rooms. |
|
 |
| |
Multi-reflector system
Cool light

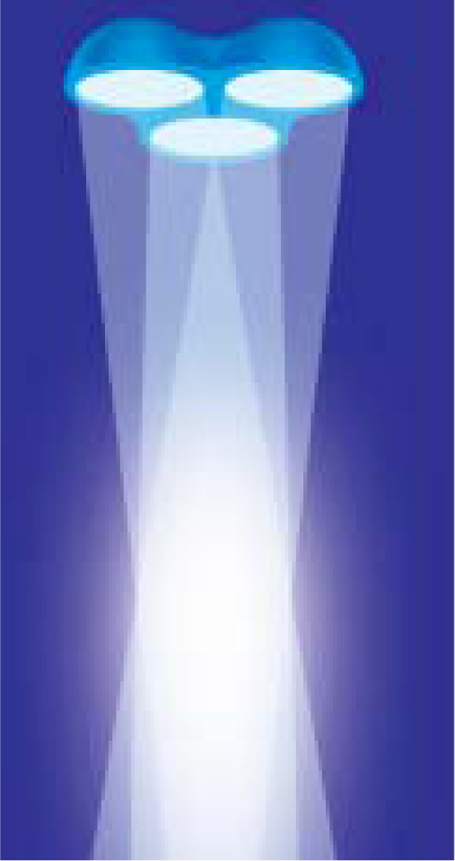

Computer calculated biconvex
dispersion lenses together
with the multi-reflector system
increase the contrast of the
OT-light and ensure a homo geneous
luminous field with lowest
possible amount of shadow.
Dielectric coated coldlight glass
reflectors reduce the lamp’s
heat radiation in the area of
the head to a minimum |
| |
|
|
| |
| |
| |
 |
| Conventional lighting systems |
Dr. Mach lighting systems R96 |
| |
|
|
|
|
| Take your choice … |
| |
 |
 |
| M3 wall model |

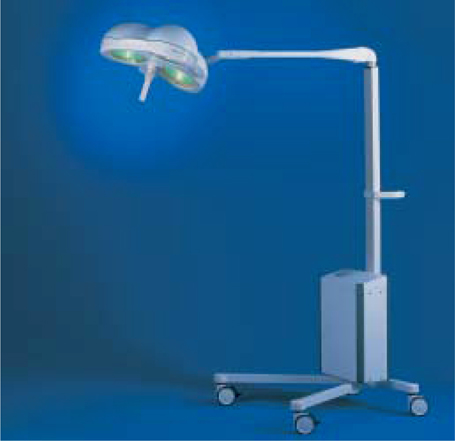

M3 stand model
(battery as shown above, optional) |
| |
 |

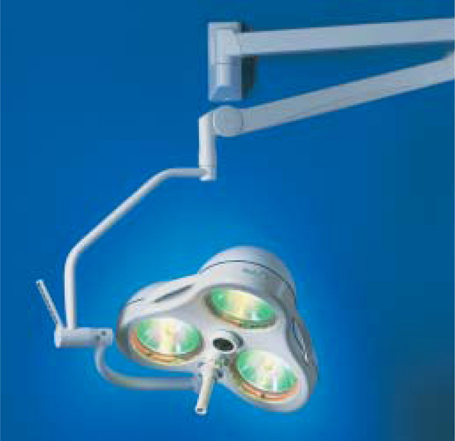

| M3 ceiling model (camera integrated in lamp head as shown above, optional) |
| |
| |
| Camera |
MFB-Mo(1) |
OFB-ST(2) |
|
| Colour film camera for visual communication (PAL) |
| lens system |
72-fach Zoom
f = 4.1 bis 73.8 mm
F1.4-3.0
Autofocus (integrated focus system) |
Auto Fokus
Autofocus
(integrated focus system) |
|
| Video output 75Ω |
Y: VS1.0 Vp-p.
Sync. negative
C: Burst 0.300 Vp-p
VBS: 1.0 Vp-p
Composite |
Y: VS1.0 Vp-p.
Sync. negative
C: Burst 0.300 Vp-p
VBS: 1.0 Vp-p
Composite |
|
| Image points |
752 (H) x 582 (V) |
752 (H) 582 (V) |
|
| Horizontal resolution |
more than 460 lines |
more than 460 lines |
|
| Vertical resolution |
more than 400 lines |
more than 400 lines |
|
| Humidity |
20 – 85% |
20– 85% |
|
Dimensions
(Ø, length) |
80 x 150 mm |
80 x 150 mm |
|
| Weight |
900 g |
900 g |
|
| Interference radiation in acc. with |
FCC Klasse A |
FCC Klasse A |
|
| |
 |
|
|
| |
|
|
