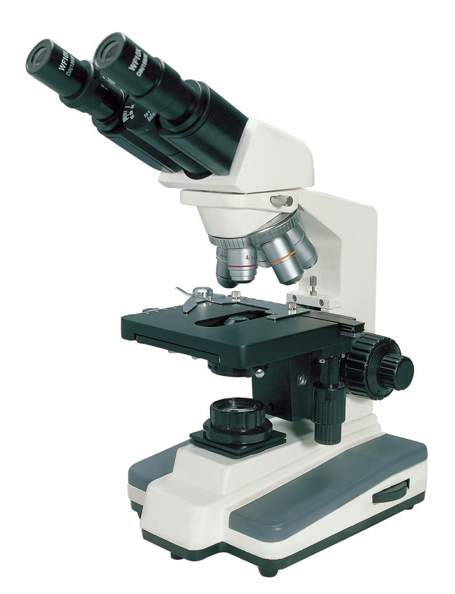

For extensive lab use in clinical and research setting. MRP-5000 provides five objectives and interchangeable
condenser system which applies to bright field, phase contrast and dark field techniques. Lower position of
mechanical stage knob offers comfort for extended use. |
| |
| Features: |
| |
|
 |
45° binocular Seidentopf head, rotatable
360° |
| |
|
|
Pair of 10X wide field eyepieces,
interpupillary distance adjustment
55-75mm |
| |
|
|
5 DIN Achromatic parfocal and parcentered
objectives, backward mounted: 4X (N.A.
0.10), 10X (N.A. 0.25), 40XR (N.A. 0.65),
60XR (N.A. 0.90), 100XR Oil (N. A. 1.25) |
| |
|
|
Magnification: 40X to 1000X |
| |
|
|
Focusing stop to prevent objectives and
slides from damage |
| |
|
|
140mm x 135mm graduated mechanical
stage (range of travel 40 x 80mm) with
lower knobs of coaxial drive |
| |
|
|
Spring loaded slide holder |
| |
|
|
Abbe condenser NA 1.25 with rack and
pinion adjustment |
| |
|
|
Iris diaphragm with blue filter |
| |
|
|
Field diaphragm offers more light control |
| |
|
|
Coaxial coarse and fine focusing tension
controls |
| |
|
|
Variable intensity halogen illuminator, 6V
20W |
| |
|
|
Replacement bulb and fuse, Immersion oil |
| |
|
|
Dust cover |
| |
|
|
Size: 25.4 x 20.3 x 42 (H) cms |
| |
|
|
Net Weight: 5 kgs |
| |
|
|
CE certified |
| |
|
Replacement Lamp: MA07
Shipping Weight: 8.2 kgs |
